Main Pay Terminal Setup

• Assemble Elo floor stand
• Run DC cable of 22″ Elo touchscreen’s power supply through inside of floor stand’s pole from base to top
• If connecting to Internet using Ethernet, also run Ethernet cable through inside of floor stand’s pole
• Place 22″ Elo touchscreen with screen face down in portrait mode on a flat surface, such that Power & Home buttons are on right side
• Remove bottom peripheral slot cover, plug barcode scanner into slot & fasten it with included screws (2)
• Plug one connector of USB-C t0 USB-C cable into USB-C slot on back of MagTek DynaFlex card reader
• Place DynaFlex card reader on top of short lowered section (has a hole for the USB-C cable to pass through) of card reader bracket & fasten it using the 4 shorter pan-head M4 screws (included in floor stand box), such that card insert & swipe slots are toward outer edge of bracket – see figure below. Ensure that card reader is oriented correctly, else on-screen instructions for inserting & swiping a card will be incorrect; Tap should be towards long section of the bracket, and Insert slot should be towards the outer edge

• Plug other connector of USB-C to USB-C cable into USB-C slot on back of Elo touchscreen
• Plug Bluetooth beacon into USB-A slot on back of Elo touchscreen
• Plug DC power connector into power slot of Elo touchscreen
• If connecting to Internet using Ethernet, plug connector of Ethernet cable into Ethernet slot of Elo touchscreen
• Hold card reader/bracket assembly such that top of card reader & screen of Elo device are facing in same direction (see below diagram for correct orientation), and attach top of long section of reader/bracket assembly to upper 2 VESA mount holes of Elo touchscreen using 2 of 4 longer pan-head M4 screws (included in floor stand box), but do not tighten screws
• Slide Elo touchscreen & card bracket/reader assembly into upper VESA mount notches of floor stand, and attach bottom portion of lower VESA mount of floor stand to Elo touchscreen & card bracket/reader assembly using 2 of 4 longer pan-head M4 screws (included in floor stand box), and tighten screws
• Tighten upper 2 VESA mount screws

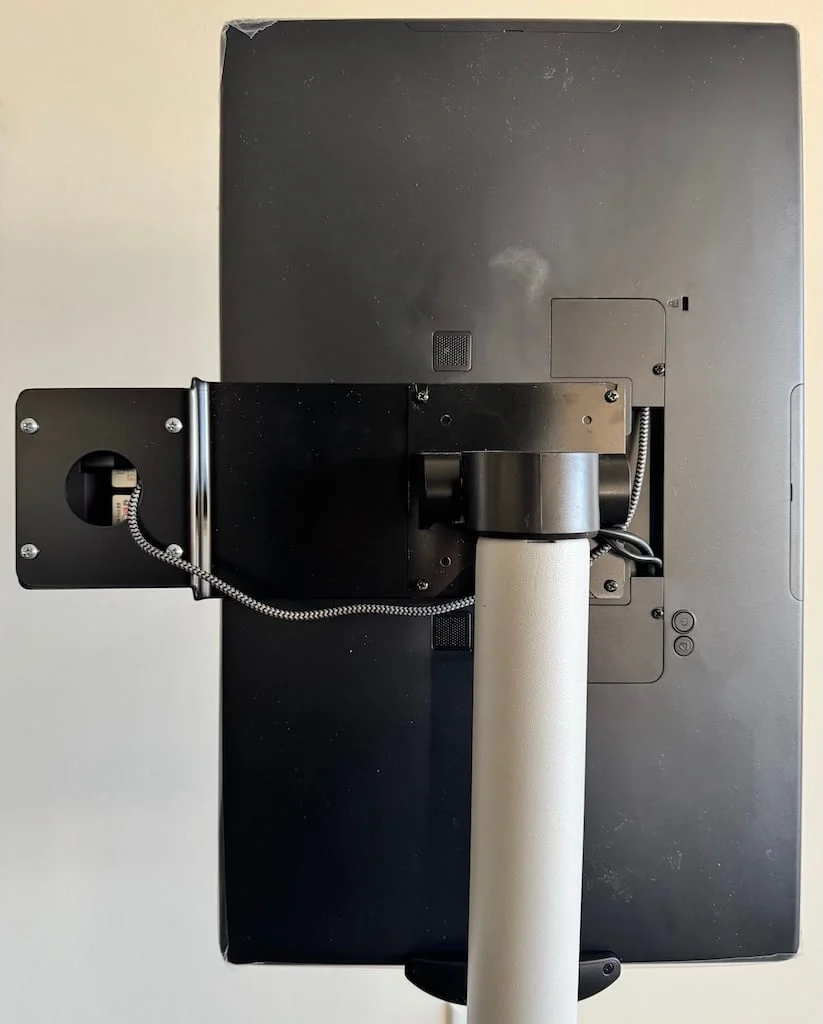

When completed correctly, back of Pay Terminal assembly should look like image below.

1. Submit Onboarding Form
2. If connecting terminal to Internet using Ethernet, make sure Ethernet cable is plugged into a working Ethernet wall slot or LAN port of a router (cellular or other)
3. After AveriGo Support has onboarded the terminal & notified you through email or phone, connect terminal to AC power, and allow it to boot up – usually takes 1-2 minutes
4. When terminal is fully powered up, click “Enroll with EloView” – Do NOT click any of the other 2 buttons
5. OPTIONAL: If connecting to Internet using WiFi:
   • Select WiFi network – if using WTI cellular router provided by AveriGo, select “gsgprivate”
   • Enter WiFi network’s password – if using WTI cellular router provided by AveriGo, password is “Gr@65c@nG0” (last digit is a zero)
6. AveriGo Support will configure & update device
7. AveriGo Support will install GrabScanGo pay terminal app on device
8. Allow app to turn on Bluetooth when prompted
9. Allow access to Location Services when prompted
10. Log into GrabScanGo pay terminal app using your pay-terminal-specific login credentials – contact [email protected] if you do not have them
11. Program Bluetooth beacon with Major & Minor provided by AveriGo Support – associated market should then be displayed on the screen
12. Click “Click to Start Scanning”
13. Scan “Disable QR Code” barcode displayed below; Scanner will emit short beep if barcode is successfully scanned – this disables scanner from scanning QR codes

1. Connect device to AC power, and allow it to boot up – usually takes 1-2 minutes
2. Set up Internet connection (if WTI cellular router is being used at location, see installation instructions below):
   • If connecting to Internet using location’s Ethernet, connect Ethernet cable between terminal & location’s Ethernet outlet
   • If connecting to location’s or WTI router’s (provided by AveriGo) WiFi:
     1. Press both buttons on rear of device simultaneously so Control Panel password popup is displayed on screen
     2. Enter password: 1elo
     3. Click “Admin”
     4. Enter password: 1elo
     5. Click “Settings”
     6. Click “Android Settings”
     7. Click “Network & Internet”
     8. Click “Wi-Fi”
     9. Select WiFi network – if using WTI cellular router provided by AveriGo, select “gsgprivate”
     10. Enter WiFi network’s password – if using WTI cellular router provided by AveriGo, password is “Gr@65c@nG0” (last digit is a zero)
   • If location has a firewall, or will only provide a static IP address, see additional Internet setup instructions below
3. Click “Click to Start Scanning”
4. Scan 1 or 2 products to make sure they scan
5. Check out & pay

• If location has a firewall, request location’s IT department to allow access to the following URLs & ports:
  • https://api.averigo.com; Port 443
  • https://payments.averigo.com; Port 443
  • https://analytics.averigo.com; Port 443
  • https://eloview.com; Port 443
• If location only provides a static IP address:
  • Request the following info from location’s IT department:
    1. IP address
    2. Subnet mask
    3. Gateway address
  • After info is received, configure device:
    • Press both buttons on rear of device simultaneously so Control Panel password popup is displayed on screen
    • Enter password: 1elo
    • Click “Admin”
    • Enter password: 1elo
    • Click “Settings”
    • Click “Android Settings”
    • Click “Network & Internet”
    • Click “Ethernet”
    • Click “Ethernet Configuration”
    • Select “Static IP”
    • Enter IP address, Netmask (Subnet mask) & Gateway address provided by location’s IT department
    • Enter 8.8.8.8 for DNS1 address, and 8.8.4.4 for DNS2 address
    • Click “CONFIRM”
